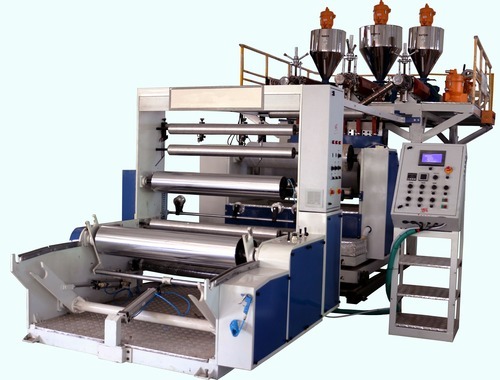

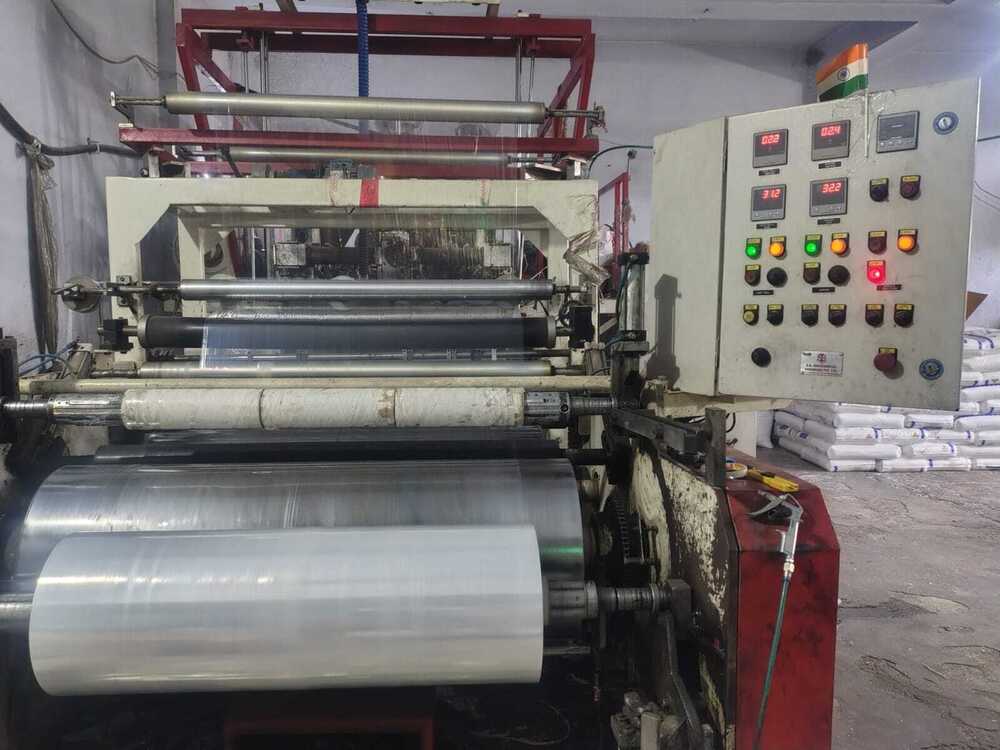

Stretch Film Making Machine

Get a Price/Quote

MOQ : 1 Unit

Stretch Film Making Machine Specification

Torque
High Torque Output

Phase
Three Phase

Diameter
Screw diameter: typically 50-75 mm (variable)

Shape
Rectangular base unit with cylindrical components

Product Type
Stretch Film Making Machine

General Use
Manufacture of stretch film for packaging applications

Material
Mild Steel, Stainless Steel, Alloy steel

Type
Extrusion Stretch Film Machine

Capacity
250-500 kg/hr (varies with model)

Weight (kg)
Approx. 5000-8000 kg (depends on configuration)

Computerized
Yes

Automatic
Yes

Touch Screen
Yes

Control System
PLC Controlled

Surface Treatment
Polished/Coated

QC System
Automated Inspection/Online Monitoring

Tolerance
0.01 mm

Drawing
Available

Voltage
380 V / 440 V

Dimension (L*W*H)
7000 mm x 3000 mm x 3500 mm (may vary)

Feature
High output, Multi-layer extrusion, Energy Efficient, Consistent thickness

Color
As required / Standard (Blue/White/SS)

Cooling Method
Air & Water Cooling

Application
Pallet wrapping, food packaging, industrial packaging

Film Thickness Range
12-50 microns

Max Film Width
500 mm - 2000 mm

Drive System
AC Servo Motor

Operator Required
1-2 persons

Extruder Motor Power
30 kW - 90 kW

Compressed Air Requirement
0.5 MPa

Heating Zones
Multiple (4-8) independent zones

Production Speed
120-220 m/min

Working Noise Level
<78 dB

Frequency
50/60 Hz

Screw L/D Ratio
30:1

No. of Layers
3, 5, or 7 layers (as per model)

Roll Core Inner Diameter
76 mm (3 inches)

Stretch Film Making Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

Stretch Film Making Machine About

A stretch film making machine is industrial machinery used to produce high-elasticity, clear plastic wrap stretch film primarily from Linear Low-Density Polyethylene LLDPE and Low-Density Polyethylene LDPE granules. These machines typically utilize cast film extrusion technology, drawing molten plastic through a flat T-die onto water-cooled chill rolls to achieve uniform thickness, strong tensile strength and excellent puncture resistance.

The resulting industrial-grade wrap is used across global e-commerce, food and beverage, warehousing, and logistics sectors to secure heavy pallet loads for transport. Below is a breakdown of top machinery models, core technical features, and typical production workflows.

Top Machinery and Equipment Options

Cast Stretch Film Plant - Automatic Grade: Highly efficient, industrial grade production plant engineered for continuous operation.
- Extrusion method utilizing low maintenance, direct-drive motor technology.
- Heavy duty metal chassis backed by a 1 year manufacturer warranty.
- Optimized for turning out large batches of machine grade pallet wrap safely.
- Available via direct suppliers like Tradeindia.
- Double Layer Stretch Film Making Machine with One Color Printing: Multi-functional configuration built for specialized commercial runs.
- Formulated with an integral twin-screw extruder to output multiple film weights seamlessly.
- Configured with an integrated inline one-color printing station for custom branding or security logos.
- Produces standard folding widths ranging from 500mm to 1000mm at 0.015. 0.05mm thicknesses.
- Available online through global B2B platforms like Made in China.
- Plastic Stretch Film Machine - Automatic Grade: A high-output extrusion line tailored for heavy distribution and logistics needs.
- Features a fully automated PLC smart-control system to manage material flow rates without manual intervention.
- Eliminates transmission energy loss via an advanced direct-drive mechanism.
- Engineered for processing LLDPE and LDPE polymers smoothly under high heat.
- Distributed by manufacturing specialists listed on Tradeindia.
Tirpal Film Making Machine: A versatile entry level system suitable for producing both industrial cling wrap and agricultural multi layer tarps.
- Features an eight part construction, featuring specialized feeding blocks and dual extruder units.
- Well suited for packaging operations or small scale regional distribution startups.

Efficient Multi-layer Extrusion

Engineered for versatile performance, this machine utilizes advanced extrusion technology to manufacture 3, 5, or 7-layer films. The servo-driven extruder delivers high torque and consistent melt flow, ensuring superior film clarity and strength for reliable packaging.

Precision Quality and Automated Control

With its PLC-based control system and automated inspection capability, the machine continuously monitors and adjusts film thickness and quality. Multiple heating zones ensure uniform film properties while minimizing energy consumption and production waste.

Operator-Friendly Design and Safety

Designed for easy operation and maintenance, the system requires just one or two operators. User interfaces like a large touch screen and ergonomic layout, along with low noise operation (<78 dB), provide a safe and comfortable working environment.

FAQ's of Stretch Film Making Machine:

Q: How does the Stretch Film Making Machine ensure consistent film thickness and quality?

A: This machine employs advanced PLC controls, a multi-zone heating system, and automated online inspection to monitor film properties in real time. These features work together to maintain a consistent thickness (tolerance up to 0.01 mm) and uniform quality across all layers.

Q: What are the main applications for the films produced by this machine?

A: The stretch films manufactured can be used for pallet wrapping, food packaging, and various industrial packaging applications, offering protection and secure containment during transport and storage.

Q: When should I choose a 3, 5, or 7-layer model?

A: Your choice depends on the required film characteristics and application. 3-layer film suits general packaging, while 5 or 7 layers provide enhanced barrier, strength, and stretch capabilities for more demanding industrial or food packaging tasks.

Q: Where can this machine be installed and what utilities are required?

A: Designed for industrial facilities, the unit requires three-phase power (380 V/440 V), compressed air at 0.5 MPa, and access to both air and water for cooling. Its size allows installation in standard production halls.

Q: What is the process for producing stretch film with this machine?

A: Raw materials are fed into the extruder, melted, and forced through multi-layer dies. The film is then cooled using air and water systems, wound onto rolls with a 76 mm core, and undergoes automated quality inspection before packaging.

Q: How does the machine benefit manufacturers compared to conventional systems?

A: It offers higher output rates (up to 500 kg/hr), reduced labor (1-2 operators), superior film quality, and energy efficiency. Its robust control and inspection systems also lower waste and downtime, maximizing productivity.
