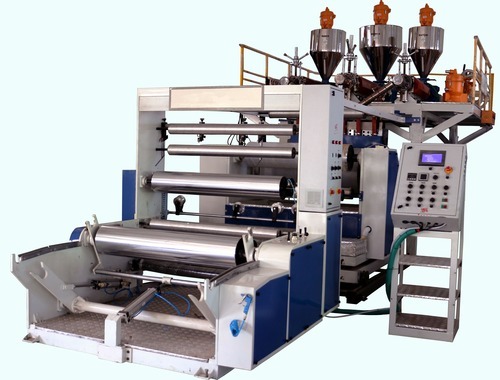

Stretch Film Making Machine

Get a Price/Quote

MOQ : 1 Unit

Stretch Film Making Machine Specification

Phase
3 Phase

Shape
Rectangular body with cylindrical rollers

Diameter
Screw diameter: 55-80 mm (model dependent)

Torque
Standard 850 Nm per main drive

Product Type
Stretch Film Making Machine

General Use
Manufacturing stretch film for packaging industry

Material
Mild Steel/SS304 with precision drive parts

Type
Automatic Cast Stretch Film Extruder

Capacity
150-500 kg/hr (varies with model)

Weight (kg)
6500-9000 kg (depends on configuration)

Computerized
Yes

Automatic
Yes

Touch Screen
Yes

Control System
PLC Control

Surface Treatment
Polished/Coated as per industrial standards

QC System
In-line thickness gauge and monitoring

Tolerance
0.01 mm

Drawing
Provided by manufacturer upon order

Voltage
380V/415V, 3 Phase, 50/60 Hz

Dimension (L*W*H)
8200mm x 3000mm x 3200mm (model dependent)

Feature
High output, energy efficient, low noise, multi-layer film

Color
Customizable/Blue-Grey standard

Extruder Heating Zones
4-6

Max Film Thickness
10-50 micron

Production Speed
120-160 m/min

Operator Required
1-2

Core Inner Diameter
76 mm (3 inch)

Raw Material
LLDPE, LDPE, other polyolefin blends

Power Consumption
75-120 kW/hr

Main Drive Power
18.5-45 kW (model dependent)

Max Film Width
1000-2000 mm

Max Screw Speed
100-130 rpm

Safety Features
Emergency stop, motor overload protection, interlock system

Take-up Roller Width
1000-2000 mm

Noise Level
<75 dB

Chiller Requirement
20-50 TR, water cooled

No. of Layers
2/3/5 layer configuration available

Stretch Film Making Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
1 Week

Stretch Film Making Machine About

A stretch film making machine is industrial machinery used to produce high-elasticity, clear plastic wrap stretch film primarily from Linear Low-Density Polyethylene LLDPE and Low-Density Polyethylene LDPE granules. These machines typically utilize cast film extrusion technology, drawing molten plastic through a flat T-die onto water-cooled chill rolls to achieve uniform thickness, strong tensile strength and excellent puncture resistance.

The resulting industrial-grade wrap is used across global e-commerce, food and beverage, warehousing, and logistics sectors to secure heavy pallet loads for transport. Below is a breakdown of top machinery models, core technical features, and typical production workflows.

Top Machinery and Equipment Options

Cast Stretch Film Plant - Automatic Grade: Highly efficient, industrial grade production plant engineered for continuous operation.
- Extrusion method utilizing low maintenance, direct-drive motor technology.
- Heavy duty metal chassis backed by a 1 year manufacturer warranty.
- Optimized for turning out large batches of machine grade pallet wrap safely.
- Available via direct suppliers like Tradeindia.
- Double Layer Stretch Film Making Machine with One Color Printing: Multi-functional configuration built for specialized commercial runs.
- Formulated with an integral twin-screw extruder to output multiple film weights seamlessly.
- Configured with an integrated inline one-color printing station for custom branding or security logos.
- Produces standard folding widths ranging from 500mm to 1000mm at 0.015. 0.05mm thicknesses.
- Available online through global B2B platforms like Made in China.
- Plastic Stretch Film Machine - Automatic Grade: A high-output extrusion line tailored for heavy distribution and logistics needs.
- Features a fully automated PLC smart-control system to manage material flow rates without manual intervention.
- Eliminates transmission energy loss via an advanced direct-drive mechanism.
- Engineered for processing LLDPE and LDPE polymers smoothly under high heat.
- Distributed by manufacturing specialists listed on Tradeindia.
Tirpal Film Making Machine: A versatile entry level system suitable for producing both industrial cling wrap and agricultural multi layer tarps.
- Features an eight part construction, featuring specialized feeding blocks and dual extruder units.
- Well suited for packaging operations or small scale regional distribution startups.

Advanced Layer Configuration for Maximum Flexibility

With selectable 2, 3, or 5-layer setups, the machine caters to a wide range of stretch film requirements in packaging industries. This multi-layer technology enables improved strength, puncture resistance, and adaptability for diverse wrapping needs, ensuring tailored solutions for various product types and shipping demands.

Superior Control and Easy Operation

Equipped with a fully computerized PLC control system and intuitive touch screen, operators can easily monitor, adjust, and optimize production parameters. Safety is ensured with emergency stop features, motor overload protection, and integrated interlock systems, minimizing risk and promoting smooth, uninterrupted operations.

Consistent Quality and High Output

The machine features in-line thickness monitoring and precise drive components made from Mild Steel or SS304, ensuring consistent film quality and tight tolerances down to 0.01 mm. Production speeds up to 160 m/min and a capacity of 150-500 kg/hr guarantee high efficiency, meeting both small and large-scale manufacturing requirements efficiently.

FAQ's of Stretch Film Making Machine:

Q: How does the machine accommodate different film layer configurations?

A: The Stretch Film Making Machine can be configured for 2, 3, or 5-layer film production. You can select the appropriate setup during installation to match your application requirements, enabling customization for specific strength and stretch characteristics.

Q: What materials can be used in this stretch film extruder?

A: The machine processes a variety of raw materials, including LLDPE, LDPE, and other polyolefin blends, allowing flexibility based on film properties needed for your packaging applications.

Q: When should routine maintenance be performed on the machine?

A: Routine maintenance should be carried out according to the manufacturer's recommendations, typically outlined in the provided operation manual. Regular checks include cleaning, lubrication of moving parts, and inspection of safety systems to ensure optimal performance and longevity.

Q: Where is this stretch film making machine typically used?

A: This machine is primarily used in industrial packaging production facilities across India and internationally, where it manufactures stretch film for pallet wrapping and other secure packaging solutions.

Q: What is the process for installing and operating the machine?

A: Upon order, the manufacturer provides detailed installation drawings. Operators (usually 1-2 required per shift) use the touch-screen and PLC system to start, configure, and monitor production. The machine's automated features streamline film extrusion, thickness control, and winding.

Q: How does the machine benefit packaging operations?

A: With high output rates, energy-efficient design, and ability to produce strong multi-layer films with tight tolerances, this machine enhances productivity and ensures reliable, high-quality packaging films tailored to customer needs.

Q: What safety features are included in this machine?

A: Safety is prioritized through emergency stop switches, motor overload protection, and an integrated interlock system. These features help protect operators and prevent equipment damage during operation.
